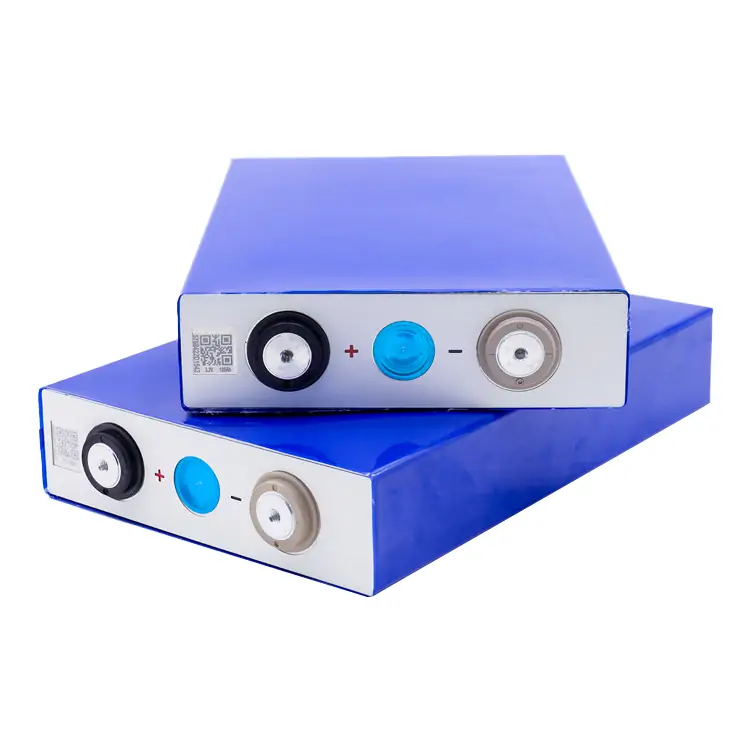

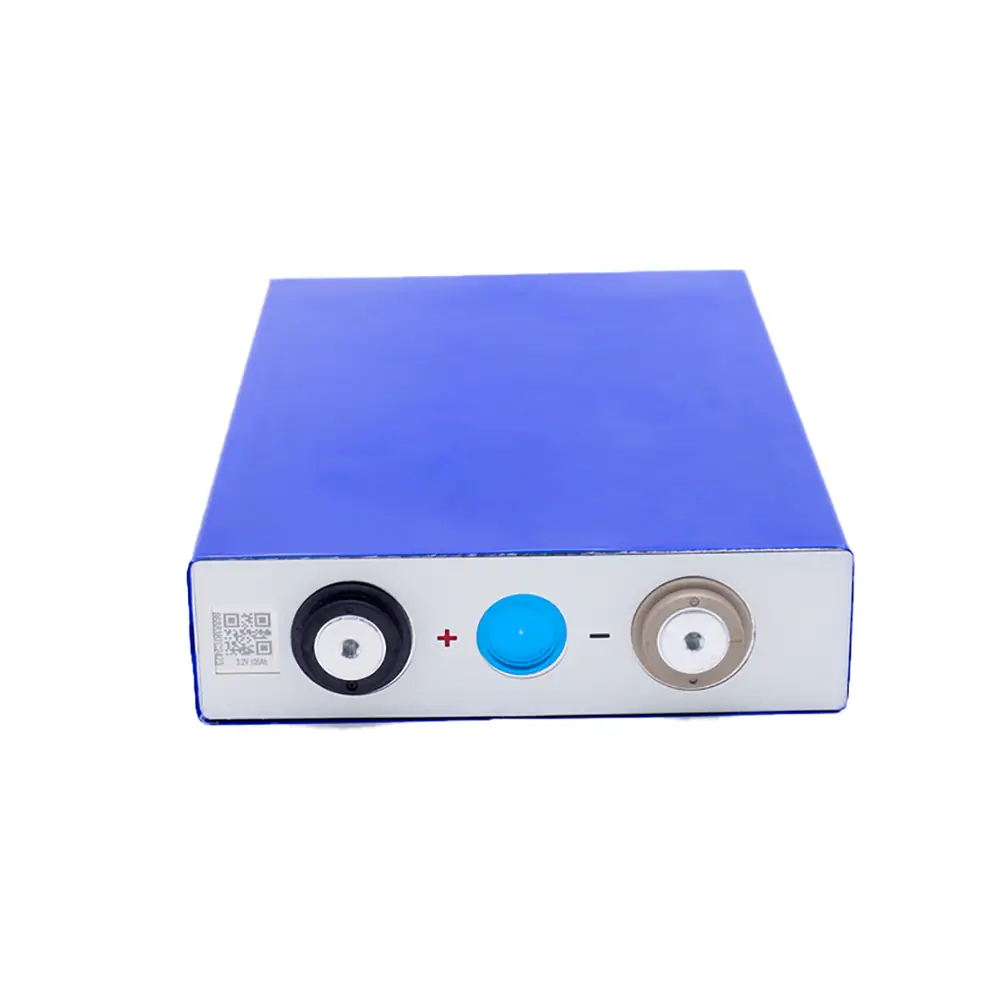

3.2V 105ah LF105 Prismatic LiFePO4 Battery Cell

Reliable Power: LiFePO4 Battery & LiFePO4 cells
3.2V 105ah lithium iron phosphate lifepo4 cell with more than 2000 cycles.
Description


Brand new Grade A LF105 3.2V 105Ah Rechargeable Lithium LiFePO4 Battery Cells With Original QR Code



We offer Grade A, brand new 105ah lifepo4 battery cells with guaranteed capacity. Our LiFePO4 solar batteries come complete with copper bus bars and screws/washers for free. Additionally, we provide certificates such as CE, MSDS, UN, and UL—if you require any of these please don’t hesitate to contact us.

When you order from EVlithium you can rest assured that you are receiving quality products with adequate capacity that conform to the relevant safety standards. Our experienced team is available to answer any questions or concerns you may have about our products. With an expansive range of premium lithium-ion batteries on offer—we look forward to helping you make the right choice for your off-grid living or business needs.







Item

Parameter Specification

Min. Capacity

105Ah

Initial IR

0.32mΩ ± 0.05mΩ

Nominal Voltage

3.2V

Charging Cut-off Voltage

3.65V

Discharging Cut-off Voltage

2.5V (T> 0°C)

2.0V (T ≤ 0°C)

Standard Charging Current

52.5A

Standard Discharging Current

52.5A

Operation Temperature

Charging Temperature

0°C ~ 65°C

Discharging Temperature

-35°C ~ 65°C

Storage Temperature

3 months

0°C ~ 35°C

1 month

-20°C ~ 45°C

Life Cycle

4000 cycles

Dimension

200.5*130.3*36.4 mm

Weight

1980g ± 60g

Shell Material

Aluminum











Welding Parameter of Al Busbar



Laser Welding Depth: ≤ 2.0 mm
Max Pressure Force on Poles: 700 N
Max Torque Force on Poles: 6 N·m
Max Temperature Force on Poles: 130 ¡æ







eve lf105 105ah lifepo4 battery cell



 battery product performance curve







Packing details of EVE LF105 105Ah LiFePO4 Battery Cell





Packing details of eve 105ah lifepo4 battery cell
