172kW 344Kwh BR-8-1228.8/280-L liquid cooling battery cluster

BR-8-1228.8/280-L

Liquid cooling battery rack

Modular design, good compatibility, flexible configurations of system capacity

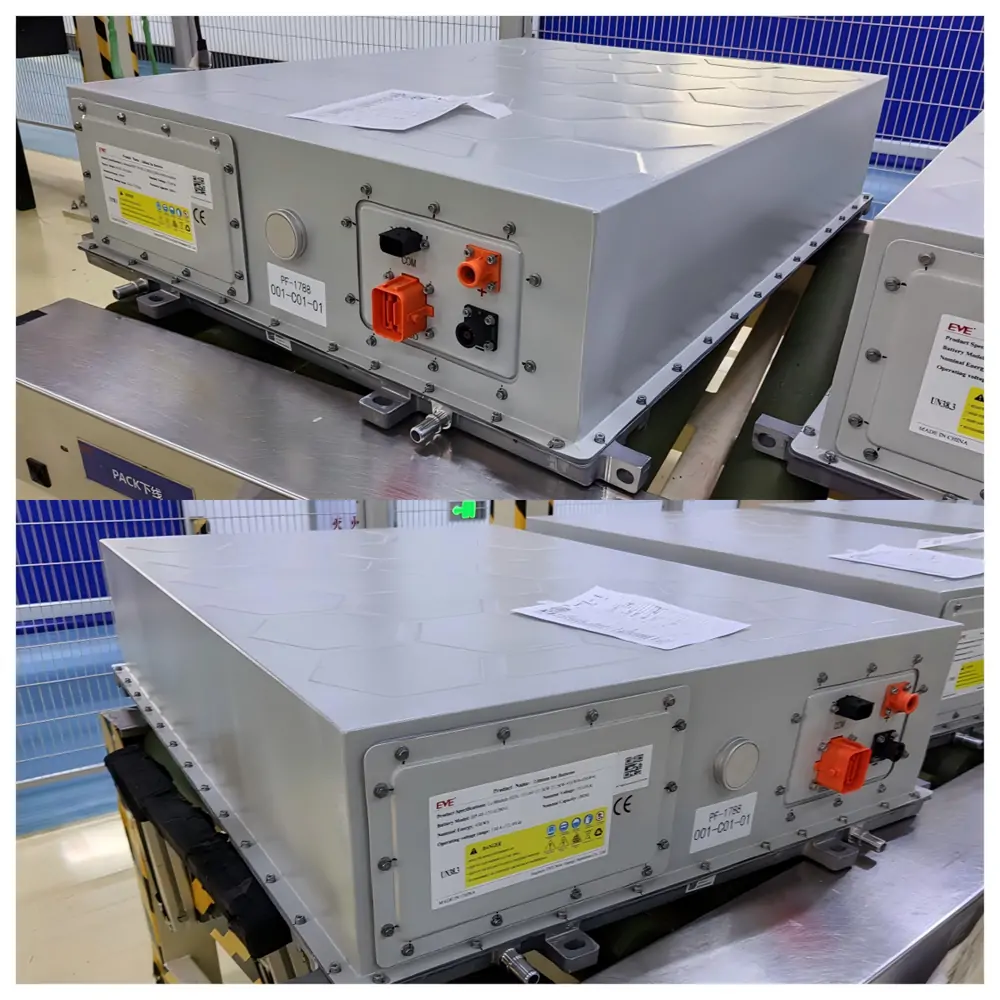

The BR-8-1228.8/280-L battery clusteris consisted of 1 battery cluster switchgearunit and 8 battery packs (1P48S) configured together in series. And the battery cluster isequipped with circuit breakers (or disconnectors), main positive and negative contactors, positive and negative circuit fuses, pre-charging circuits, ACDC switches andother components to ensure overload protection, short circuit protection and otherfunctions.

Features

First Hierarchy

PACK+BMU Functions: temperature acquisition, volt.age acquisition battery balancing

Second Hierarchy

High voltage box+BCMU Functions: Information collection, status estimation, threshold protection

Third Hierarchy

Current Combiner cabinet+BAMSFunctions: DC confluence, acquisition, storage, processing, information display, communication with PcS and EMS

BMS

Monitor, view, and set PCS, battery system, air conditioner, fire hydrant, and other operation data and fault data. record system charging and discharging data,process data, and generate reports

Parameters BR-8-1228.8/280-L

Details

The dimension of BR-8-1228.8/280-L battery cluster

The mounting hole of BR-8-1228.8/280-L battery cluster

Application

It provides energy storage solutions with high security and high cost-effectiveness under the comprehensive scenario of power generation side, grid side and user side
